Irrigation Zone Addition and Expansion

Only within that station's flow budget. Every head added to a zone takes pressure from the others, and once the supply is past its limit the far heads mist or fail to rise. If the new area also has different plants, sun or soil, EPA WaterSense advises giving it its own hydrozone rather than sharing a schedule.

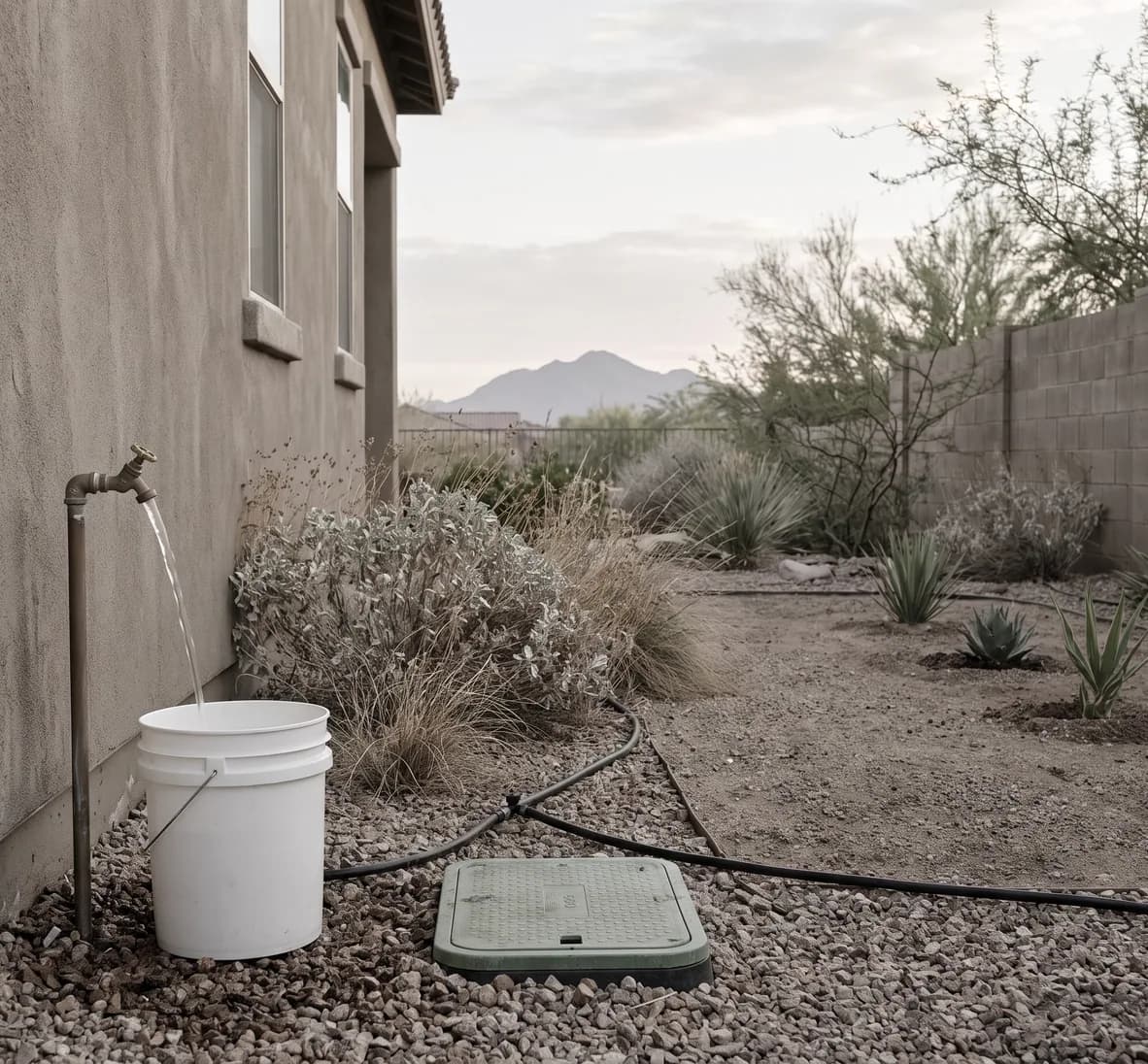

It depends on the flow and pressure available at the point of connection, measured at the hour the system runs, against what each existing station already draws. The controller sets a second limit: one terminal per zone, so a full controller needs an expansion module or a larger unit before another valve is wired in.

Usually. AMWUA notes that new plants need water far more often than established ones, roughly a year for shrubs and three years for trees, and that low-water plants rarely need more than weekly irrigation after their first summer. A bed on its own valve can follow that curve while the established plants keep their schedule.

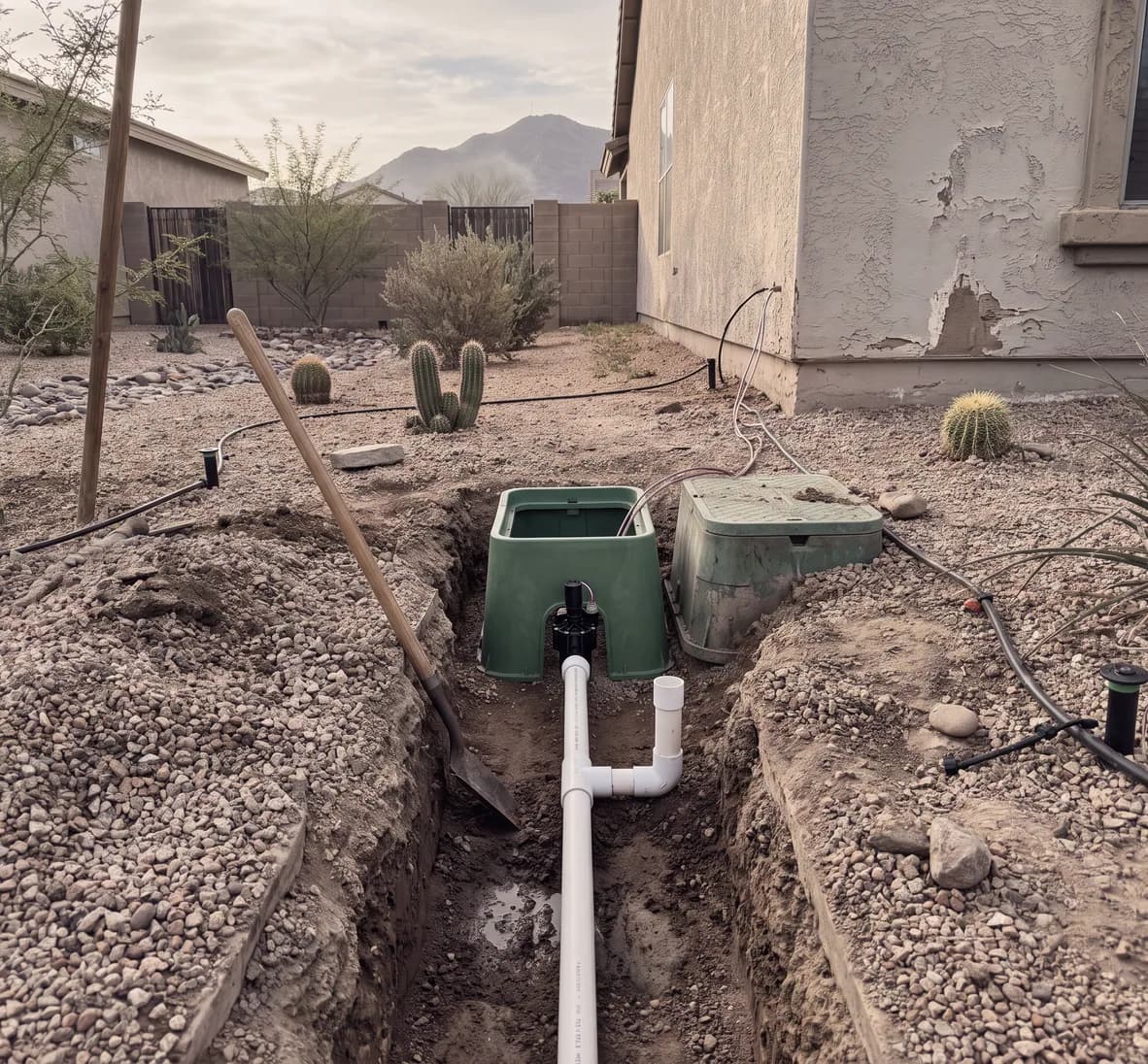

Only if the existing controller has no spare station terminal. A new valve needs one wire to a free terminal plus the shared common. When every terminal is used, the choices are a controller that accepts an expansion module or a larger replacement, and that decision is made before the trench is opened rather than after.
